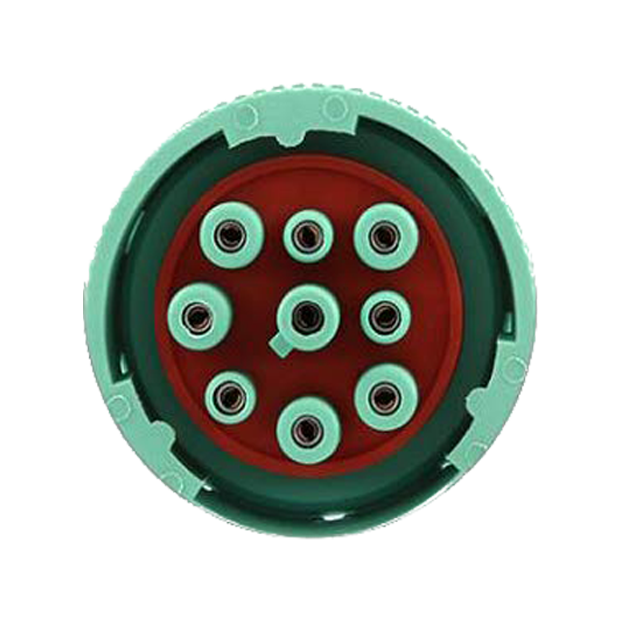

9-PIN CABLE

Its design ensures a secure connection, emphasizing simplicity and efficiency in the setup process. These standard adapter cables for PT30 play a pivotal role in enabling data transmission, real-time tracking, and compliance monitoring, contributing to the overall effectiveness of the PT30 ELD system.

The PT30 – 9 Pin Cable Specifications

Designed for HOS, the PT30 incorporates Bluetooth Low Energy (BLE) technology. This ensures a direct and efficient connection, eliminating the need for complex external setups. The installation process is designed for simplicity, requiring only a single connection to the diagnostic connector port within the vehicle, expediting the setup and minimizing downtime.

• Right-angle green over-molded connector for optimal convenience and ease of use.
• Connects to the 9-pin diagnostic port within the vehicle using an over-molded Molex 10-pin connector, ensuring a secure and stable connection
• Durable and built to withstand transportation industry challenges, providing endurance and reliability on the road.
• Designed to connect with the PT30 ELD, ensuring secure and reliable data transmission and eliminating potential connectivity issues.

The 9-pin GPS Cable serves as an adapter cable for PT30 and is the prerequisite in the connectivity between the PT30 ELD and the vehicle's diagnostic system. Comprising nine distinct pins, each assigned a specific function in serial communication; this cable serves as the channel for data transmission, real-time tracking, and compliance monitoring.

Its primary function is to bridge the gap between the ELD device and the complex diagnostic system of the vehicle, ensuring a smooth flow of information.

The 9-Pin Cable for GPS- Function and Utility

• Enables consistent data transmission between the PT30 ELD and the vehicle’s diagnostic system.
• Facilitates real-time monitoring, enabling fleet managers to track various vehicle parameters and driver activities.
• Supports compliance with regulatory requirements such as Hours of Service (HOS) rules, ensuring accurate recording and reporting of driving hours, rest breaks, and duty status in real time.
• The connection of the PT30 ELD with the vehicle's diagnostic system through the 9-Pin Cable provides fleet managers with a comprehensive view of their operations.
• Real-time location data allows fleet managers to track the exact whereabouts of each vehicle in the fleet, facilitating informed decision-making for optimizing routing, improving response times, and enhancing overall operational efficiency.
• Facilitates gathering of engine performance statistics, including metrics like engine temperature, RPM, and diagnostic trouble codes (DTCs), enabling monitoring of the health and efficiency of vehicles and addressing issues promptly.
• Facilitates accurate HOS recording for FMCSA compliance, preventing violations and penalties related to hours of service.

Order a 9-pin Cable from SteerRight to meet your fleet management needs and ensure reliable connectivity. We also offer interest-free installments. Contact us for further details.
